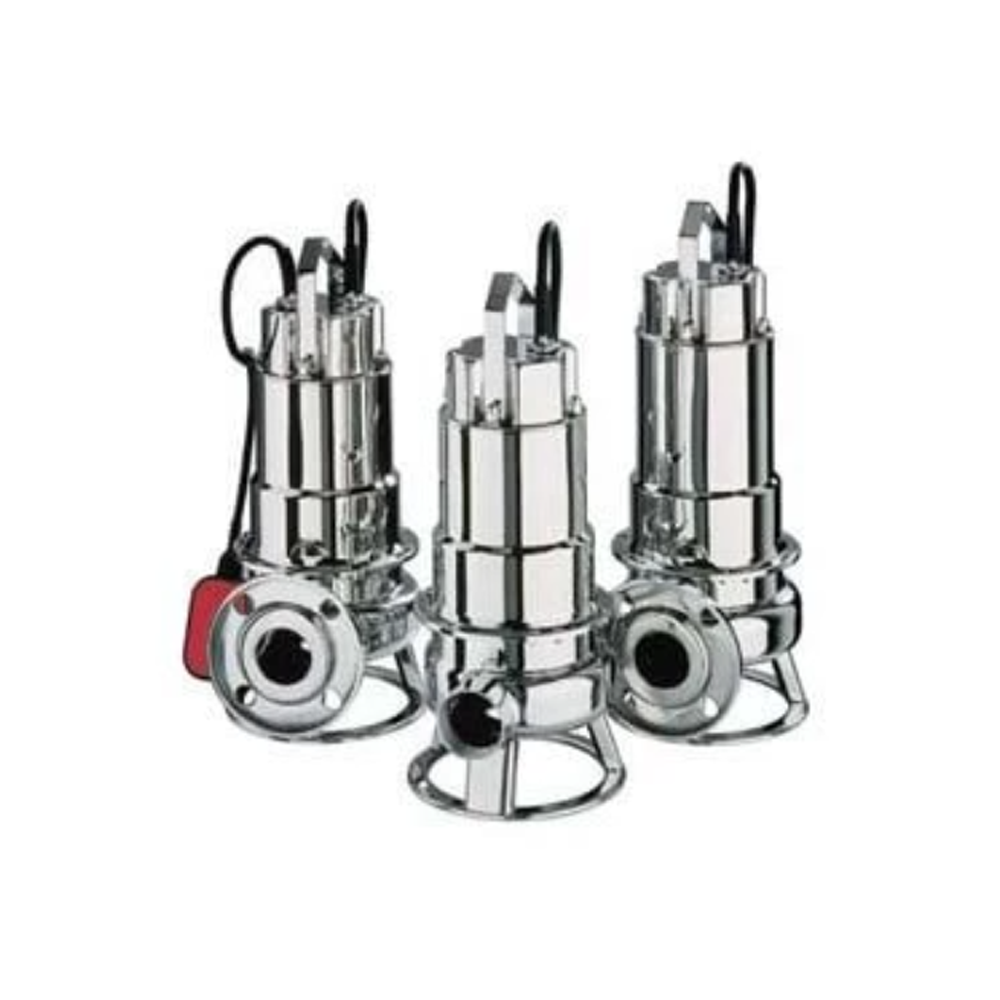

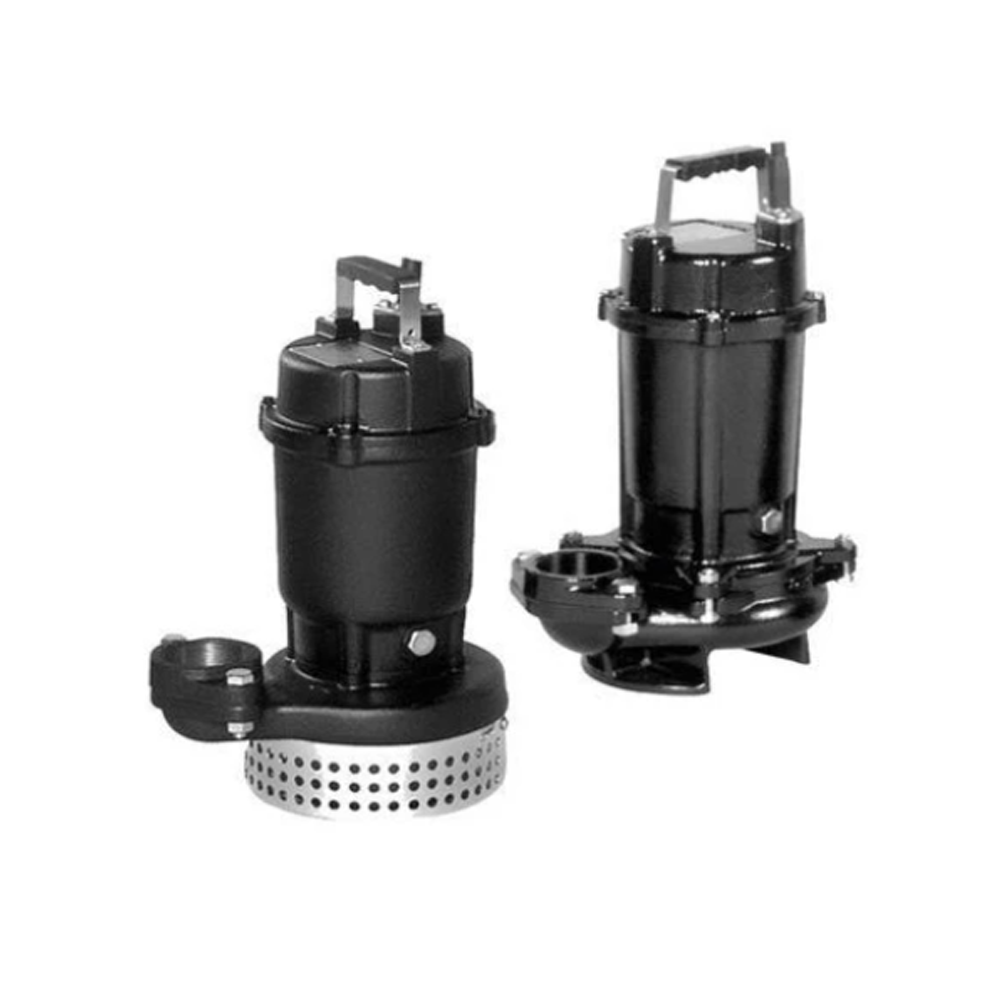

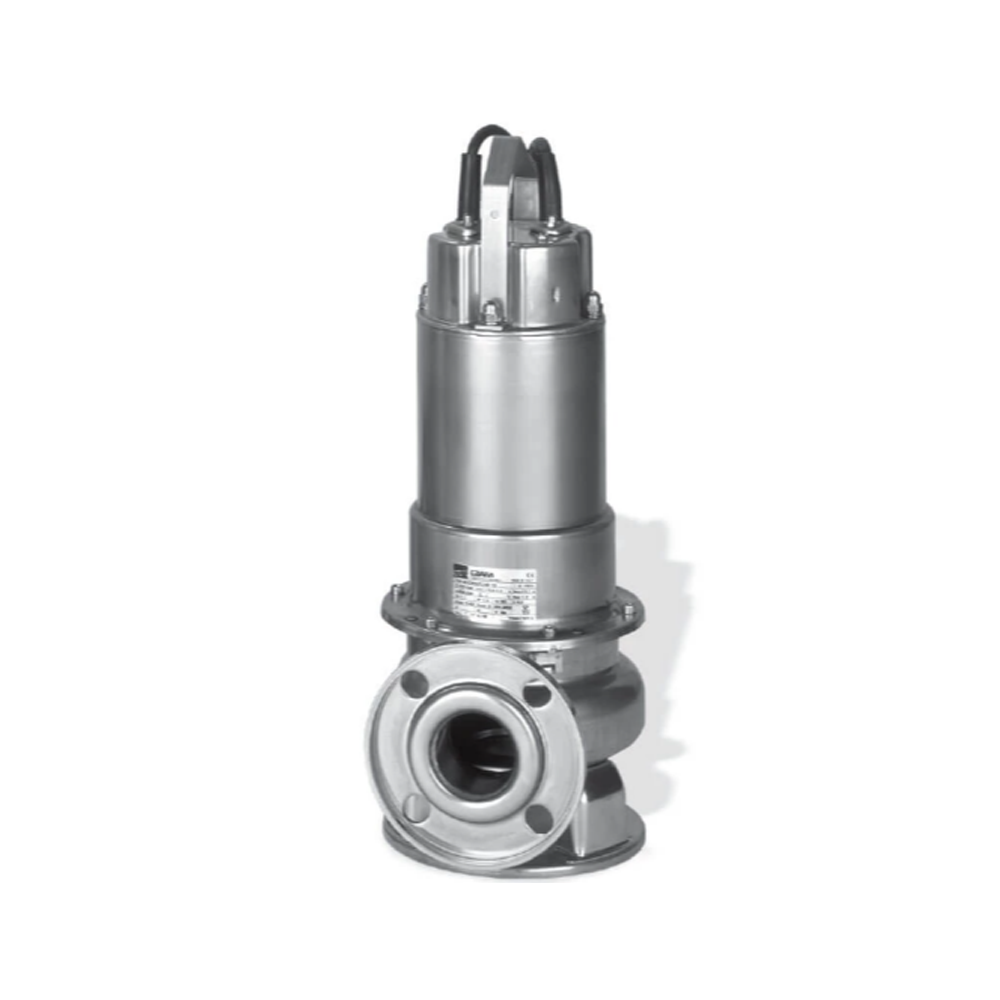

Ebara Pump
2.500,00 ر.ق
Since it is a semi-vortex pump, it can be used with liquid containing foreign objects that contain a diameter of 40-63%.
The diameter of the solid material passes through is large
For transferring raw water from small merged septic tanks.
Drainage / equipment drainage
Rainwater and spring water drainage
Features:
Since it is a semi-vortex pump, it can be used with liquid containing foreign objects that contain a diameter of 40-63%.
The diameter of the solid material passes through is large, making it ideal for transferring raw water in small merged septic tanks.
Built-in electric protection device prevents burns of electric motors due to overload, restraints, and defects.
With the detachable device, it is easy to install, lift and maintain inspection.
When using automatic driving type (DVSA type) and automatic alternating (DVSJ type), you can automatically drive by simply connecting the power supply.
| SPECIFICATIONS | ||
|---|---|---|
| Liquid Handled | Type of liquid | Rain water, grey water, clean water |
| Temperature [°C] | Max: 40 | |
| Maximum working pressure [bar] | 10 | |
| Construction | Impeller | Semi-vortex |
| Mechanical seal | SiC/SiC/NBR – Impeller Side Carbon/Ceramic/NBR – Motor Side |
|
| Bearing | Sealed ball bearing | |
| Pipe Connection | ||
| Suction [inch] | – | |
| Discharge [inch] | EN 1092-2 DN40, 50, 65, 80 | |
| Material | Casing | Cast Iron |
| Impeller | Cast Iron | |
| Shaft | SS403 | |
| MOTORS | ||
|---|---|---|
| Type | Single Phase / Three Phase | |
| No. of Poles | 2 | |
| Rotation Speed [min⁻¹] | ≈ 2800 | |
| Power Rating [kW] | 0.4 – 7.5 | |
| Frequency [Hz] | 50 | |
| Voltage [V] | 380 ±10% | |
| Efficiency Level | IE1 | |
| Protection Degree | IP68 | |
